Brand Name : AlisenLED/OEM/ODM
Model Number : P1.52/P1.83/P1.95/P2.5/P2.6
Certification : CE/CSA
Place of Origin : China
MOQ : 1uite module or 1 unit cabinet
Payment Terms : T/T, L/C, D/P, D/A, Western Union
Supply Ability : 5000SQM/Month
Delivery Time : 7-30 Working days
Packaging Details : flightcase or Wooden case

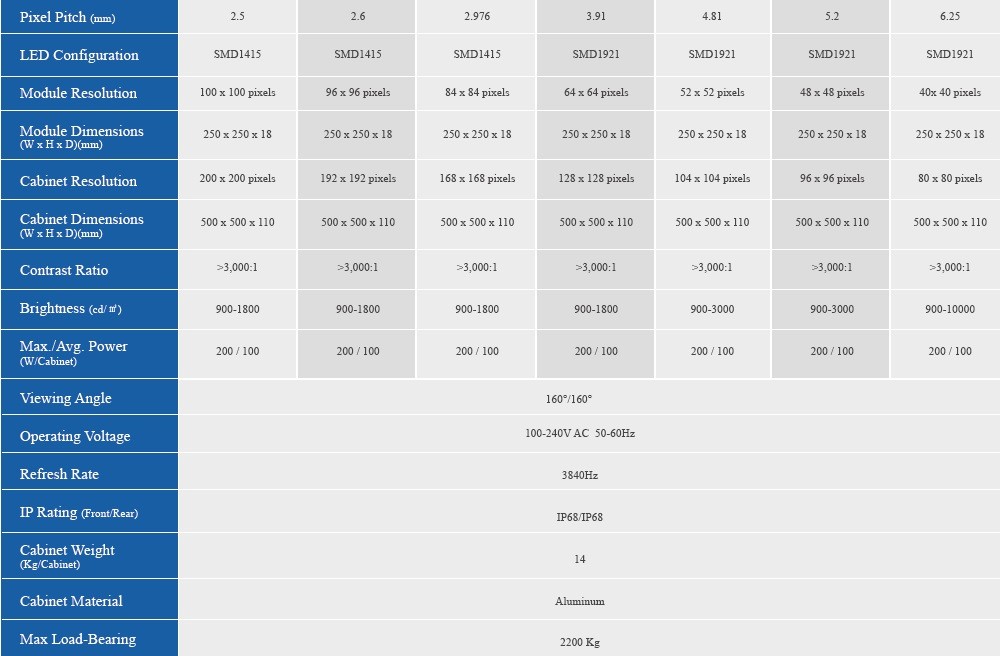

Brightness(cd/㎡) : 600-1200NITS
Contrast Ratio : >3000:1
Display Colors : 12-16BIT
Pixel Pitch : 2.5/2.6/2.976/3.91/4.81/5.2/6.25
Refresh Rate : 3840HZ
Viewing Angle : H160-V160
LED Configuration : SMD1415/SMD1921
Module Dimensions(W*H*D)(mm) : 250x250x18
Module Resolution : 164x164 / 136x136/ 128x128/ 100x100 /96x96 pixels
Cabinet R20rsolution : 200x200/192x192/168x168/128x128/104x104/96x96/80x80 pixels
Cabinet Dimensions : 500x500x110
Max./Avg.Power(W/Cabinet) : 200/100
Operting Voltage : 100-240V AC 50-60Hz
Cabinet Weight(Kg/Cabinet) : 14
Cabinet Material : Aluminum
Max Load-Bearing : 2200Kg
Class of protection : IP68/IP68

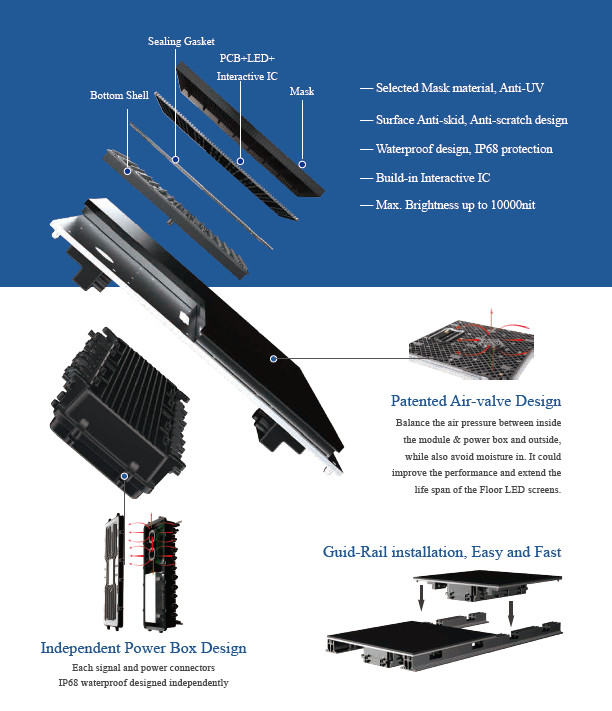

MAIN FEATURES
Anti-UV: selected mask material;
Anti-skid, Anti-scratch: Interactive IC
waterproof: IP68 protection
Ultra-thin design, can be used in the height of the limited ground laying use;
High load bearing: Solid aluminum structure design, light weight, stronger load bearing, up to 2.2T/m²
High safety: waterproof IP68/IP68, not afraid of harsh environment useGold plating process: All connectors, power supplies, wiring, etc. all adopt gold plating process
High heat dissipation: the box adopts 10mm thick aluminum plate, which can dissipate heat quickly and effectively extend the service life of the productProfessional technical mask: PC material, light diffusion process, arbitrary Angle viewing, no color difference, the whole screen viewing is better



Project case

FAQ
Q1. Are you a factory or trading company?
A: We are a direct factory,It is also a company integrating industry and trade.
Q2. what can you buy from us?
A:LED Display,LED Module,LED Screen,LED Wall,LED Display Rental
Q3. What about the quality and the payment?
A: We are also Alibaba Trade Assurance Gold Supplier.That means your payment, quality and lead time will be not a problem.We guarantee that the security of the transaction and our products are of best quality and reasonable price.
Q4. What's the product warranty?
A:All products here we offer 2 years' warranty.
Q5. What kind of packaging do you provide?
A: We provide flight case, wooden case and carton.
Q6. How can I select your product?
A: Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
Q7. How long will it take me to get the product?
A: We will send the goods as quick as possible, but often it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.
|
|
